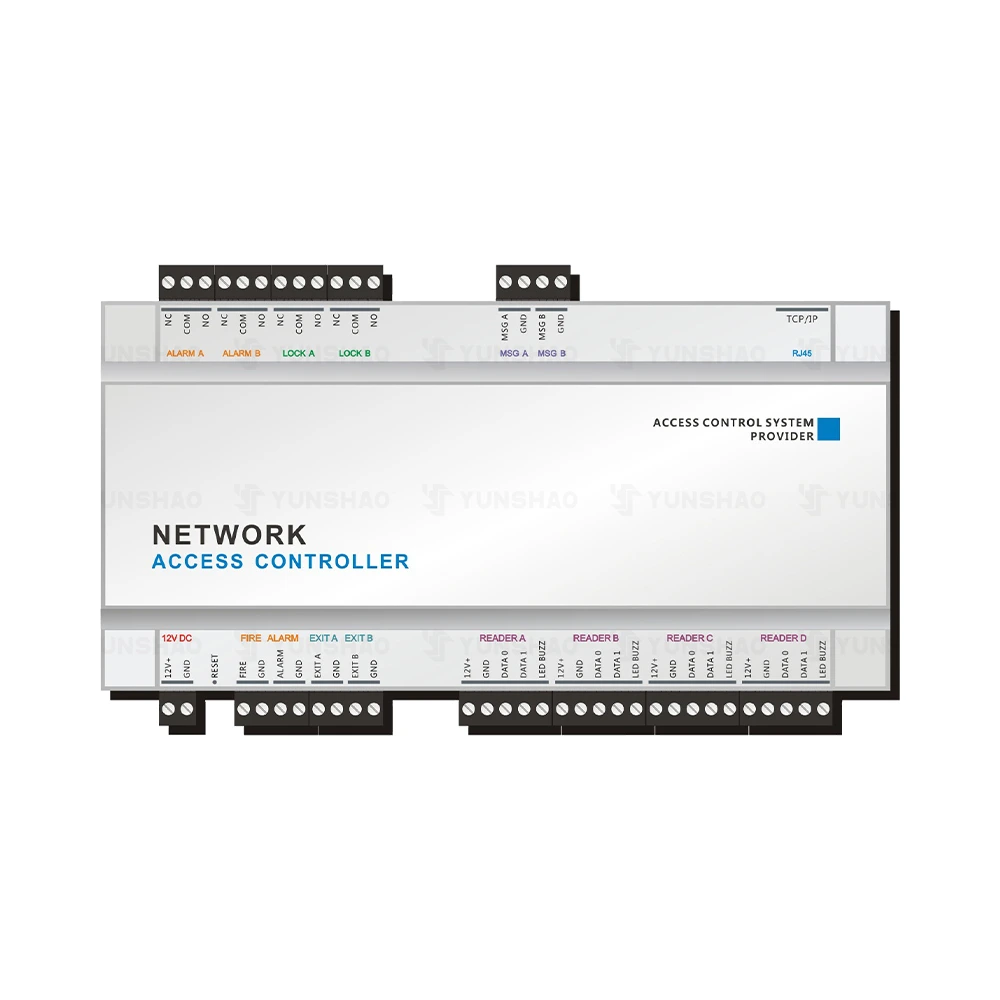

Controlador de acesso a 2 portas TCP/IP
TCP/lP 2 door 2 ways access controller is one of TCP/lP access controllers which use standard industrial TCP/P network. There is no limitation of device qty. lt connects 4 card readers to realize card swiping for door entry or exit and anti pass back.And it has built in WEB management and we can manage it directly.
85$
◆ Directly integrate 10MTCP/lP communication with excellent transmission performance.
◆ Big flash capacity can keep data for 10 years if no power.
◆ All of input interfaces have optocoupler protection and system is more stable.
◆ WEB server is built in access control. We can manage and real time monitor and no need install software.
◆ Access control’s time zone can reach as many as 16 group and each groupcan have different verifications.
◆ Support multi verifications: Card, card+PSW, PSW, double cards, first cardopening, door timer,timed alarm.
◆ Support remotely open or close door, alarm, firealarm.
◆ Support software or manage door through WEB and realize global anti passback.
◆ Support alarm output of multi events like invalid card and time, door alarm,door open overtime.
◆ All of wiegand interfaces are compatible with wiegand protocol like 26,34,37.
◆ Data automatically sends without limitation of access controller qty.
◆ Separately set each cards’validity.
◆ All of our access controllers support 485,TCP/P controller’s mixing installation.
◆ Support time attendance and on line guard tour function.
◆ Support real time management monitor bymulti users and multi devices.
◆ Working with lP camera to realize network real time monitor and video capture.
Parâmetros
| User | 30000 |
| Event | 50000 |
| Alarm Event | 60000 |
| Comunicação | TCP / IP |
| Communication Distance | Software management without limitation |
| Card reader | Wiegand protocol |
| Door Open Method | Card, Card+PSW, PSW, Double card, Software, Free pass, Push button, Door timer |
| Card Reader | 4 |
| Alarm Output | 1 |
| Alarm Input | 1 |
| Fire Alarm Input | 1 |
| Fire Alarm Output | 1 |
| Release Button | 2 |
| Door Sensor Input | 2 |
| Lock Output | 2 |
| TCP/lP Communication | 1 |
| Panel Size | 210*125*22mm / 6.3*4.9*0.9in ( L*W* H ) |
| Panel Weight | 0.2kg |
| Working Voltage | 12V |
| Working Current | <80mA |
| Rated Power | ≤5W |
